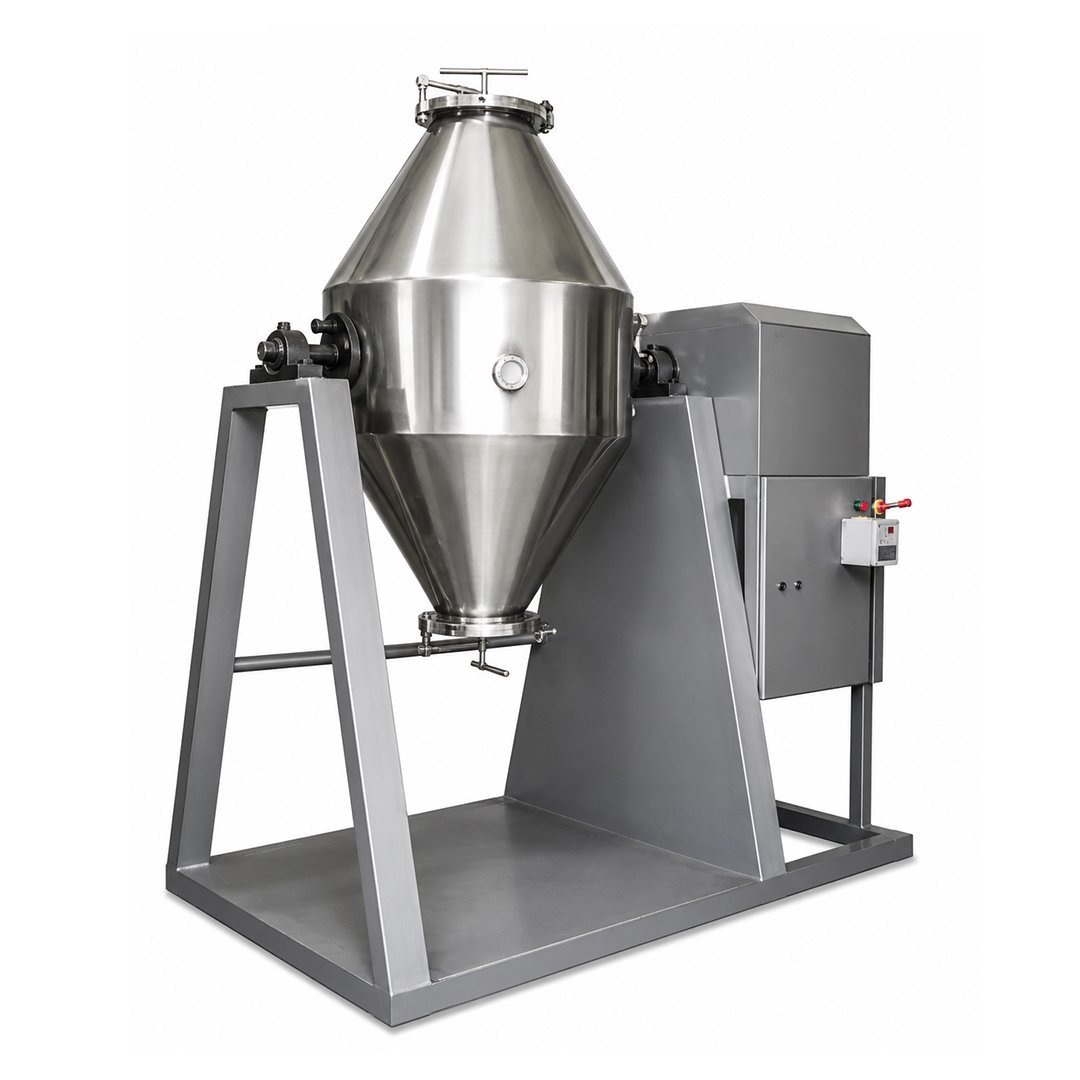

Description
Designed to deliver superior blending efficiency with gentle product handling, the Conical Industrial Mixer is engineered for uniform mixing of dry powders, granules, tea, spices, supari (betel nut), dry fruits, snack food, pet food, agro products, nutraceutical products and other free-flowing materials. Its double-cone geometry with a central cylindrical section promotes enhanced material circulation and multidirectional flow, ensuring thorough intermixing without product breakage or degradation. Welded asymmetrical internal blades further improve blending dynamics by minimizing dead zones and maintaining consistent homogeneity across varying batch sizes. Driven by a robust motor-gearbox assembly and mounted on a heavy-duty fabricated frame, the Conical Blender provides stable operation, repeatable batch performance, and low maintenance requirements. Ideal for food processing, agro-based industries, and allied sectors, this mixer offers manufacturers an efficient, scalable, and quality-focused solution for reliable dry blending applications.
The Conical Mixer is designed for uniform and thorough mixing of dry powders, granules, tea, spices, betel nuts (supari), dry fruits, snack food, pet food, agro products, nutraceutical products and similar free-flowing materials. The machine features a double-cone design with a central cylindrical section, which allows excellent product circulation and blending.
To achieve homogeneous mixing, the inner surface of the conical and cylindrical sections is fitted with welded asymmetrical mixing blades. These blades disperse, tumble, and redistribute the product in multiple directions during rotation, eliminating dead zones and ensuring consistent blend quality across varying product types and batch sizes. The design preserves product integrity, avoiding any cutting, breakage, or damage.
The mixer is equipped with a common manual outlet used for both loading and unloading, featuring a mechanical locking mechanism for safe and secure operation. It is suitable for batch-type operations, engineered for durability, ease of operation, and minimal maintenance, making it ideal for food processing, spice, and allied industries.
The conical drum can be configured in either horizontal or vertical orientation depending on product characteristics, batch size, and process requirements. The orientation flexibility ensures optimal mixing efficiency while maintaining product integrity.
Note: Drum dimensions, blade configuration, orientation (horizontal or vertical), and discharge arrangement can be tailored based on product characteristics and batch size. Mixing performance may vary depending on material characteristics and operating conditions.
General Specifications
| Parameter | General Specifications |
|---|---|
| Drum Type | Double-conical with central cylindrical section |
| Drum Orientation | Horizontal or vertical |
| Drum Size Range | Cylindrical dia: 24 – 56 inch, Conical End dia: 8 – 14 inch, Height: 48 – 96 inch |
| Drum Construction | Stainless Steel (SS-304) |
| Mixing Blades | Welded, asymmetrical, angular configuration |
| Drive System | Suitable HP based on drum size and batch load |
| Motor & Gearbox | 1 – 7.5 HP Electric motor (Make: Crompton) with gearbox (Make: Premium) |
| Rotation | Single axis uni-directional (bi-directional optional) |
| Loading / Discharge | Manually operated common inlet-outlet port with mechanical lock |
| Frame | Heavy-duty fabricated Mild Steel (MS) frame |
| Power Consumption | 0.75 – 3.75 kW |
| Electricity Supply | 3 Phase, 440 V |
| Machine Weight | 175 – 500 kg approx. |
Optional Add-ons: Timer, Alarm, Reverse/Forward Controller, Variable Speed Drive, Collection Tray + Trolley.
