Description

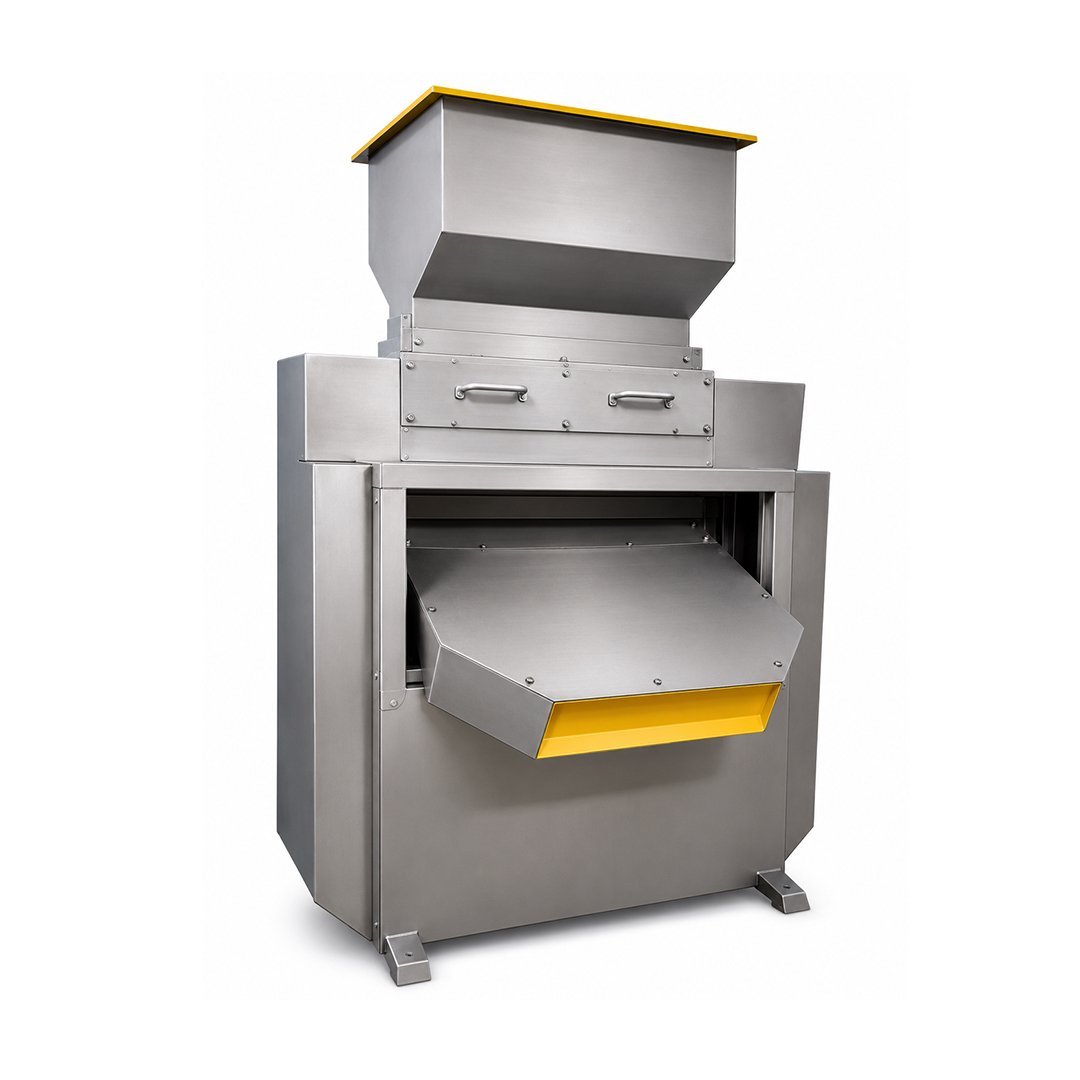

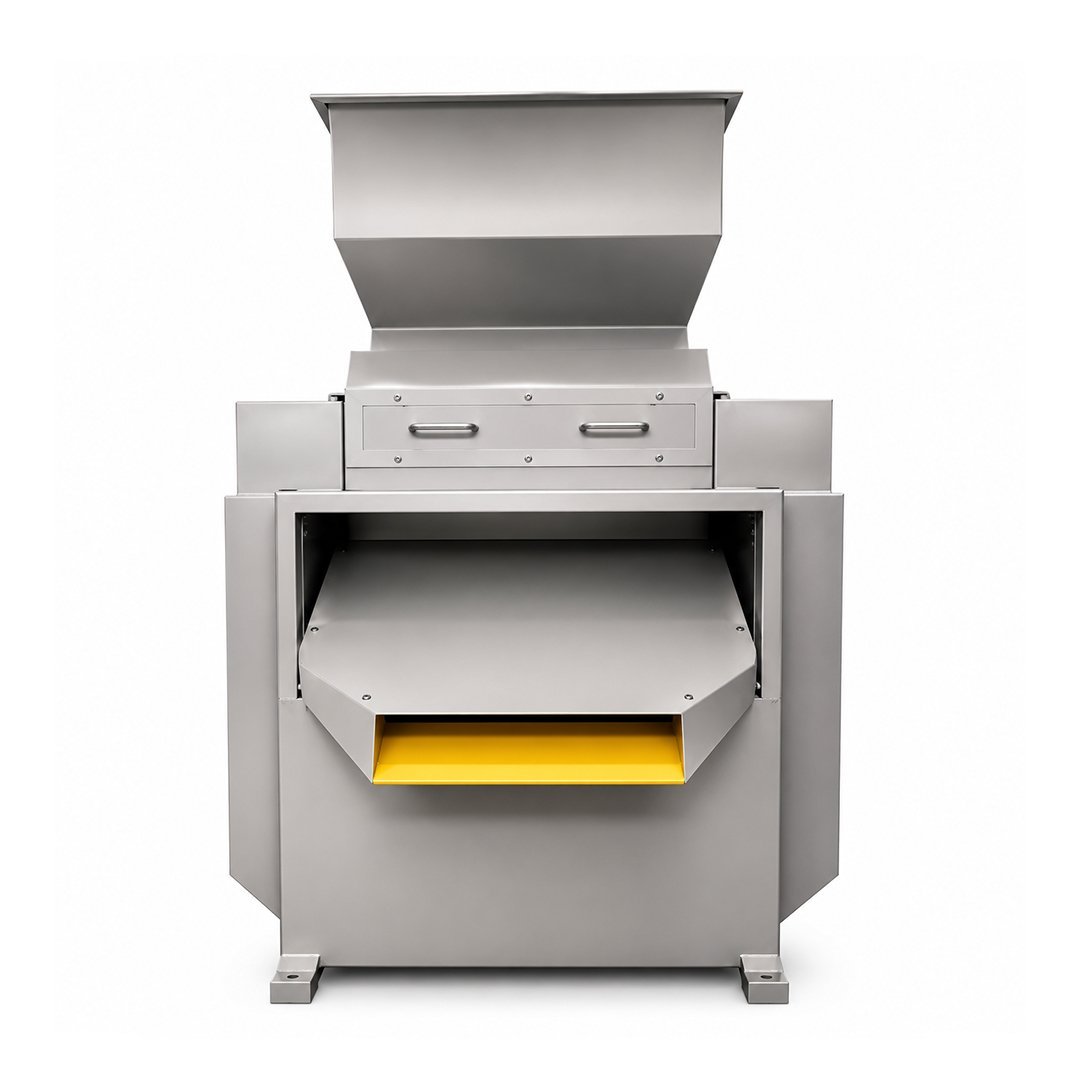

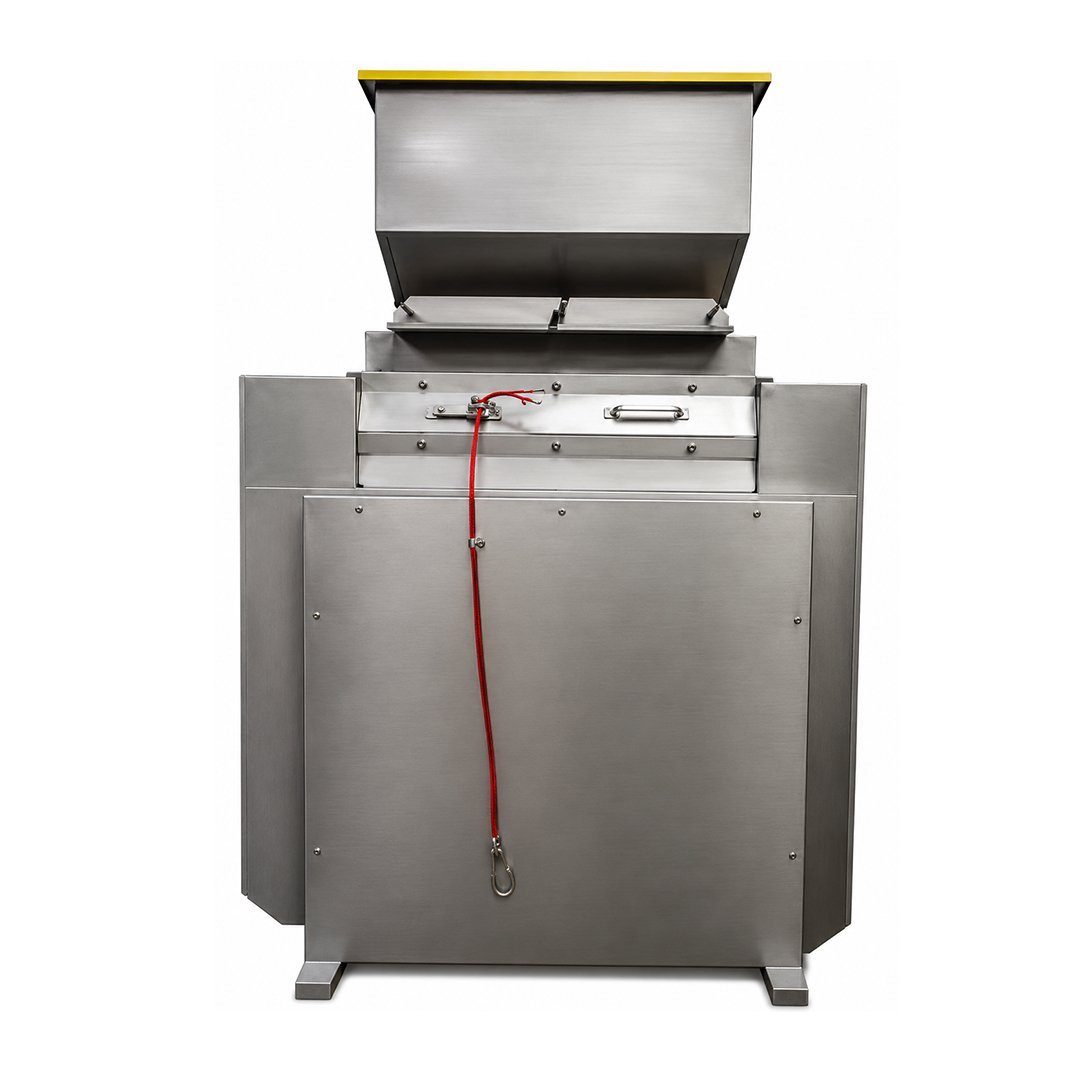

The Cutter Machine by Sunny Solly Machines is a heavy-duty industrial cutting solution engineered for precise size reduction and uniform processing of agro and food products such as supari (betel nut), tobacco, amla, dates, dalia, dry fruits, and similar materials. Designed for consistent high-output performance, this machine integrates precision-hardened cutting blades with a calibrated size-control system to ensure accurate, repeatable cut dimensions with minimal wastage. Available in 15″ and 30″ models to suit varying production capacities, the Cutter Machine delivers stable operation under continuous load, making it ideal for primary processing prior to grading, blending, drying, or packaging. Built with a robust structural frame and engineered for long service life, it offers manufacturers a dependable, low-maintenance solution for efficient, uniform cutting in medium to high-volume production environments.
The Cutter Machine is a robust industrial processing unit designed for controlled cutting and uniform size reduction of materials such as supari (betel nut), amla, dates, dalia, and other similar agro and food products. The system is engineered to deliver consistent cutting performance with minimal material loss and stable output under continuous operating conditions.
The cutting assembly is equipped with hardened and precision-engineered blades that cut the incoming product uniformly. Cut size control is achieved using a curved perforated sheet which contains precision-drilled holes of the specified diameter, corresponding to the desired cut size. Only material achieving the required size passes through the perforations, while oversized material remains within the cutting chamber for further cutting.
The machine is suitable for applications requiring reliable primary cutting prior to further downstream processing, grading, or packaging. Built with a focus on robustness, operational reliability, and ease of maintenance, this machine is engineered for long service life and user-friendly operation in industrial production environments.
General Specifications
| Parameter | 15″ Model | 30″ Model |
|---|---|---|
| Cutting Blades | 6 (4 moving + 2 fixed) | 12 (8 moving + 4 fixed) |
| Drive Motor | 5 HP | 10 HP |
| Cutting Size Range | 4 – 16 mm | 4 – 16 mm |
| Output Capacity | 250 – 350 kg/hr | 600 – 800 kg/hr |
| Max Wastage | 5 – 6% | 5 – 6% |
| Body Construction | Mild Steel (MS) | Mild Steel (MS) |
| Power Consumption | 3.75 kW | 7.5 kW |
| Electricity Supply | 3 Phase, 440 V | 3 Phase, 440 V |
| Machine Dimensions | 44 x 26 x 68 inches approx. | 50 x 30 x 68 inches approx. |
| Machine Weight | 250 kg approx. | 350 kg approx. |
Optional Add-ons: Infeed Conveyor, Collection Tray + Trolley.
